layout_attributes_t::slice_t Class Reference

placeable object geometry for a single orientation of layout_attributes_t. More...

#include <adobe/layout_attributes.hpp>

Public Member Functions
	slice_t ()

Public Attributes
alignment_t	alignment_m
bool	suppress_m
bool	balance_m
pair_long_t	margin_m
alignment_t	child_alignment_m

Detailed Description

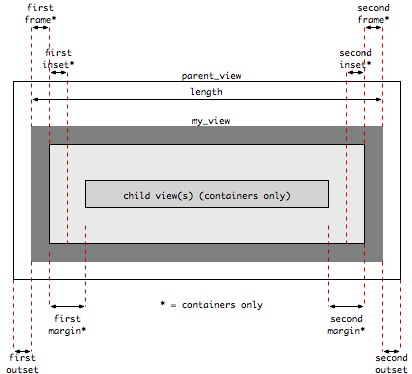

layout_attributes_t::slice_t placeable object geometry for the horizontal orientation

The above is a diagram detailing a placeable object's geometry for a the horizontal orientation. The vertical orientation is similar but runs top-to-bottom instead of left-to-right.

Definition at line 73 of file layout_attributes.hpp.

Constructor & Destructor Documentation

slice_t()

slice_t

(

)

Definition at line 74 of file layout_attributes.hpp.

Member Data Documentation

alignment_m

alignment_t alignment_m

alignment specifies the relationship of this placeable object to its parent along this orientation.

See also

alignment_t

Definition at line 78 of file layout_attributes.hpp.

suppress_m

bool suppress_m

suppress handles the propagation of guide points from the children in this placeable object to the parent of this placeable object. If suppress is true then guides are "clipped" at this placeable object and the parent of this placeable object does not see guide point information about any of the children contained within.

Todo

(sparent) Currently only implemented cross stream

Definition at line 79 of file layout_attributes.hpp.

balance_m

bool balance_m

Definition at line 80 of file layout_attributes.hpp.

margin_m

pair_long_t margin_m

margin is a pair of values- one for either end of the slice. A margin represents a border around the children of this placeable object. Thus, this value only applies to container placeable objects. Margins are similar to insets except they cannot be "bled into" by subchildren outsets.

Definition at line 83 of file layout_attributes.hpp.

child_alignment_m

alignment_t child_alignment_m

child_alignment attempts to specify the alignment of the children contained inside this placeable object for this orientation. This alignment value will be applied to all immediate children of this placeable object who have no overriding alignment value of their own (that is, their alignment is align_default).

See also

alignment_t

Definition at line 84 of file layout_attributes.hpp.
